Single sensor or sensor array

Full magnetic field scans from 8 seconds per rotor

A mobile standalone workstation for magnetic field scans of rotors, with either a single 3D sensor for ultra high-resolution scans or a custom sensor array with up to 60 sensors for cycle times of 8–15 seconds.

  • Two sensor setups: single sensor for maximum resolution, sensor array for faster measurement
  • Mobile standalone workstation
  • Automatic pass/fail evaluation
  • Magnetic imbalance analysis for each individual pole
  • Fault localization even in multilayer embedded magnet structures
  • Suitable for prototyping, development, or flexible testing in series production

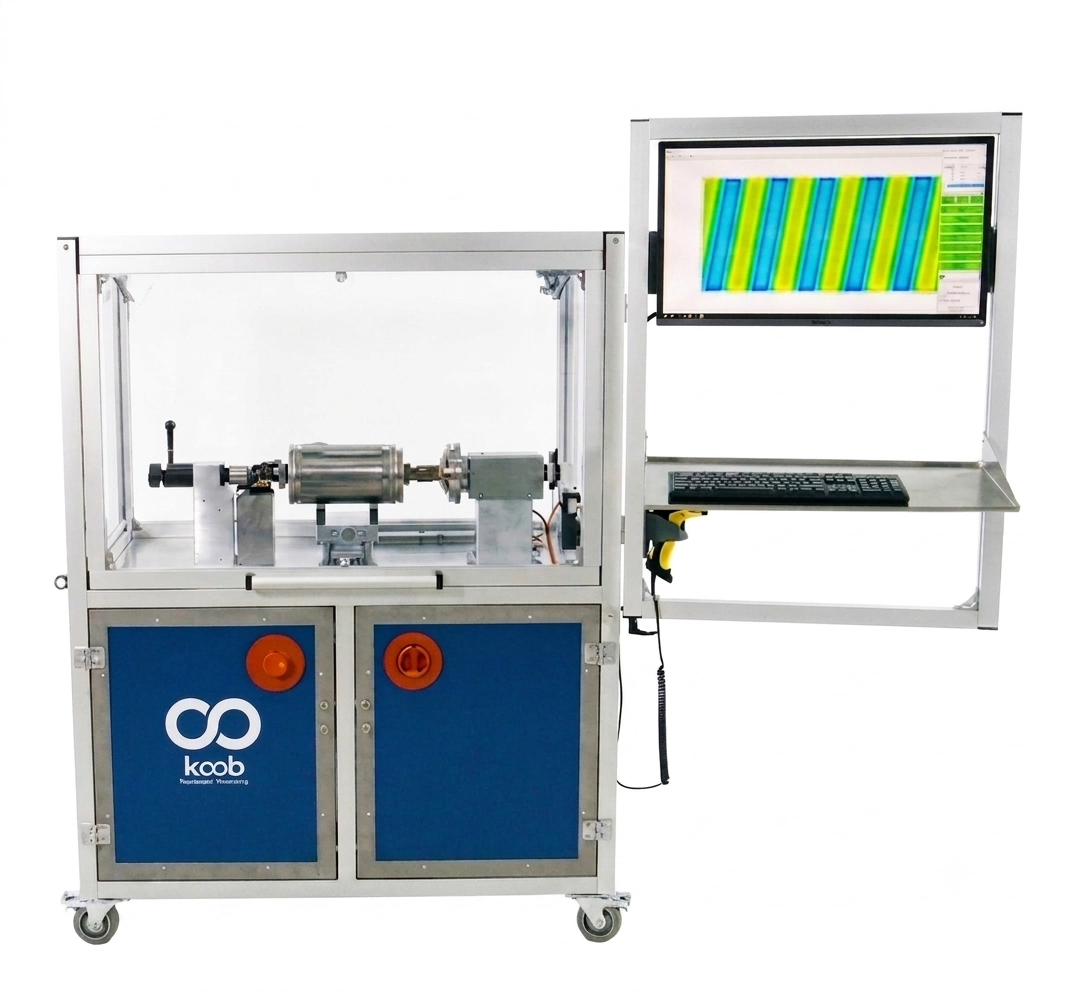

Koob mobile test bench: a rotor clamped in a transparent enclosure on a blue base cabinet, with a swing-arm monitor showing the measured field.

Choose your sensor setup

Watch the single sensor feature presentation 0:39

Maximum resolution

Single sensor

Speed approx. 30 s – 5 min

A single 3D sensor for ultra high-resolution magnetic field scans of rotors, recording all three field components.

  • Full scan in approx. 30 seconds to 5 minutes, depending on resolution
  • 3D magnetic field sensor for detecting Bx, By, Bz
  • Laser distance measurement with 1.4 µm resolution
  • All metrological components are DAkkS-calibratable

Watch the sensor array feature presentation 1:07

Faster measurement

Sensor array

Cycle time 8–15 s

A custom sensor array with up to 60 sensors scans the test object across its entire surface in just a few rotations — extremely fast, yet highly precise.

  • Custom sensor array with up to 60 sensors
  • Multi-rotor design measurement (array length = max. part length)
  • Minimal specimen heating due to short cycle time
  • Optionally extended to a fully automated test bench for inline measurement

Specifications

Datasheet (PDF)

Technical details

  • Measurement range: ±0.5 / 1 / 2 T
  • Vertical resolution: 24-bit quantization interval
  • Rotor axis resolution: 5.5 arc seconds
  • Linear measurement resolution: 50 nm
  • Rotation speed: 10 variable speed settings from 30°/s to 500°/s
  • Rotor temperature range: 20 °C – 55 °C
  • Automatic test plan selection via serial number scan
  • Unlimited rotor contour storage
  • Measurement of rotor shaft magnetization / resolver influence
  • Flexible sensor positioning
  • Variable air gap
  • Optimized for crane loading and industrial handling

Single sensor only

  • 3D magnetic field sensor for detecting Bx, By, Bz
  • Laser distance measurement resolution: 1.4 µm
  • Linear speed: 250 mm/s
  • All metrological components are DAkkS-calibratable
  • Runout and temperature monitoring
  • Sensor collision monitoring

Sensor array only

  • Custom sensor array with up to 60 sensors
  • Variable active length
  • Automatic deactivation of unused sensors

Data processing

  • 3D visualization of the magnetic field
  • Automatic generation of test reports
  • Automatic data archiving
  • Database connectivity available
  • Trend analysis across multiple measurements

Optional features

  • Programmable external excitation in various current and voltage modes
  • Automatic and interchangeable slip ring contacting for different rotor variants
  • Recording of current/voltage/temperature profiles
  • Four-wire resistance measurement

Sensor array only

  • 2D/3D laser contour measurement of the stack
  • Runout and temperature monitoring
  • Fully automated test bench for inline measurement

Software and Analysis

Magnetix Universal

Our test software – flexible, practical and in continuous development. It forms the heart of our test benches and grows with the increasing demands on testing and analysis processes.

Rely on analysis software refined over years of real-world application. Our measurement suite gives you a comprehensive view of your rotor’s magnetic behavior — from intuitive 3D field visualization to deep diagnostic tools developed in close collaboration with our customers.

  • 3D Magnetic Field Analysis
  • Single Pole Analysis
  • Skew Angle Detection
  • FFT Field Analysis
More on Magnetix Universal

Contract measurement

Test it on your own rotor first

Send us one of your rotors, or we come to your plant in Germany with a mobile test bench. You receive the 3D model of the field, the pole analysis and the measurement data – before you decide on a test bench of your own.

Request a trial measurement About contract measurement
